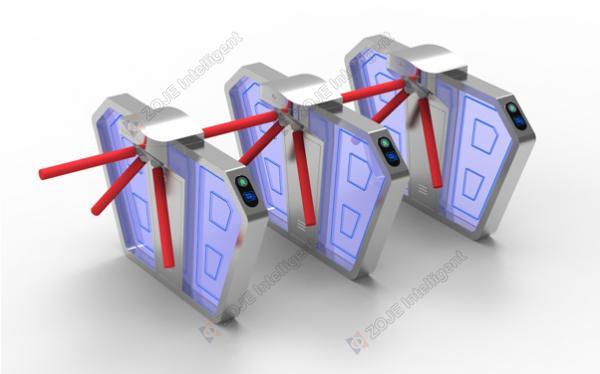

Features of ZOJE Tripod Turnstile Gates Slim Style Model No. ZOJE-S107
• As a half height turnstile, tripod turnstiles gates restrict access to one person at a time by a set of rotating tripod barrier arms.
• Access control and pedestrian traffic metering don’t have to be costly. Tripod turnstile gates can be the best solution for projects with a limited budget.
• ZOJE-S107 is an attractive tripod turnstile that is fully capable of handling areas with high pedestrian volume.
• The compact unit makes it easy to construct a multiple lane set-up while the variety of color choice allows you to match this tripod turnstile perfectly to your lobby, team or company image.
• This tripod turnstile gate can be configured to allow access in a single or bidirectional direction depending on project needs.
• For sports stadiums, gyms, university facilities, and other areas, ticket inspectors have been gradually eliminated these days as the buildings are all equipped with robust safety guard – tripod turnstile gates. The tripod turnstile gates will do their duties properly. Wherever regular control of pedestrian traffic is necessary, these tripod turnstiles will perform flawlessly.
• This tripod turnstile gate is a magnetic turnstile, it is easy to install and maintain. All kinds of access control system modules can be integrated into the cabinet, such as IC / ID / RFID card reader, fingerprint recognition, palm recognition, facial recognition, iris or retina recognition, etc.
| Standard model | ZOJE-S107 |
| Turnstile Type | Tripod turnstile |
| Cabinet material | 304 stainless steel (standard) |
| 316 stainless steel (optional) | |
| Arm material | 304 stainless steel (standard) |
| 316 stainless steel (optional) | |
| Side covered plate | Tempered glass |
| Finish | Stainless steel satin finish |
| Dimension | 1600*300*1000mm (L*W*H) |
| Passage width | ≤550mm |
| Direction | Single / bidirectional |
| Function | Fail safe |
| Power supply | AC110–220V, 50/60Hz |
| Unlock time | 0.2s |
| Flow rate | 35 person / min |
| Working environment | Indoor and outdoor |
| LED indicator | Both sides |
| Drive type | Electromagnetic (standard) |
| DC brush motor （optional) | |
| DC brushless motor （optional) |
