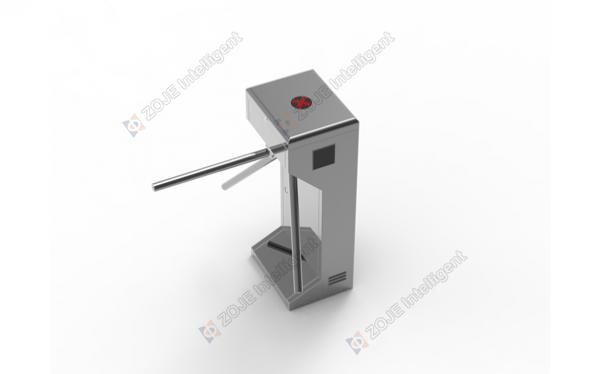

Features of ZOJE Tripod Turnstile Gates Vertical Type Model No. ZOJE-S206
Tripod turnstile gates are widely used for pedestrian flow management when access control is desired but full height security is not required.
• As we all know, tripod turnstile gates have better performance in terms of anti-tailgating compared with other series of turnstile gates.
• Vertical tripod turnstile gates are the best choice for the basic needs of entrance access control as they are relatively cheap if you are having a limited budget. Besides, they can save you a lot of space if the installation area is strictly restricted.
• Vertical tripod turnstiles are compact, flexible, easy to install and remove.
• Though they are small, they can offer sufficient space to integrate any access control module.
• They can be mounted with a display screen, passage counter, IC / ID / RFID card reader, coin or paper ticket collector, direction indicator, a command console, and all other components.
• This kind of gate is equipped with a solenoid magnetic tripod turnstile mechanism. In case of power failure or other emergencies, the arm will automatically drop for immediate and fast evacuation.
• These vertical tripod turnstile gates are mostly applied to stadiums, gyms, school libraries, recreation and amusement parks, construction sites, etc.
• The cabinet is made of 304 stainless steel. 316 stainless steel would be your perfect optional solution for outside use against severe weather conditions.
In Case You Don’t Know
Any OEM or ODM order would be warmly welcomed and highly appreciated. If you are purchasing tripod turnstile gates for designated projects with unique design, please feel free to contact us as we have years of experience in customization.
Specification of ZOJE Tripod Turnstile Gates Vertical Type Model No. ZOJE-S206
| Standard model | ZOJE-S206 |
| Turnstile type | Vertical tripod turnstile |
| Cabinet material | 304 stainless steel (standard) |
| 316 stainless steel (optional) | |
| Arm material | 304 stainless steel (standard) |
| 316 stainless steel (optional) | |
| Finish | Stainless steel satin finish |
| Dimension | 420*330*1000mm (L*W*H) |
| Passage width | ≤550mm |
| Direction | Single / bidirectional |
| Function | Fail safe |
| Power supply | AC110–220V, 50/60Hz |
| Unlock time | 0.2s |
| Flow rate | 35 person / min |
| Working environment | Indoor and outdoor |
| Drive type | Electromagnetic (standard) |
| DC brush motor （optional) | |
| DC brushless motor （optional) |
